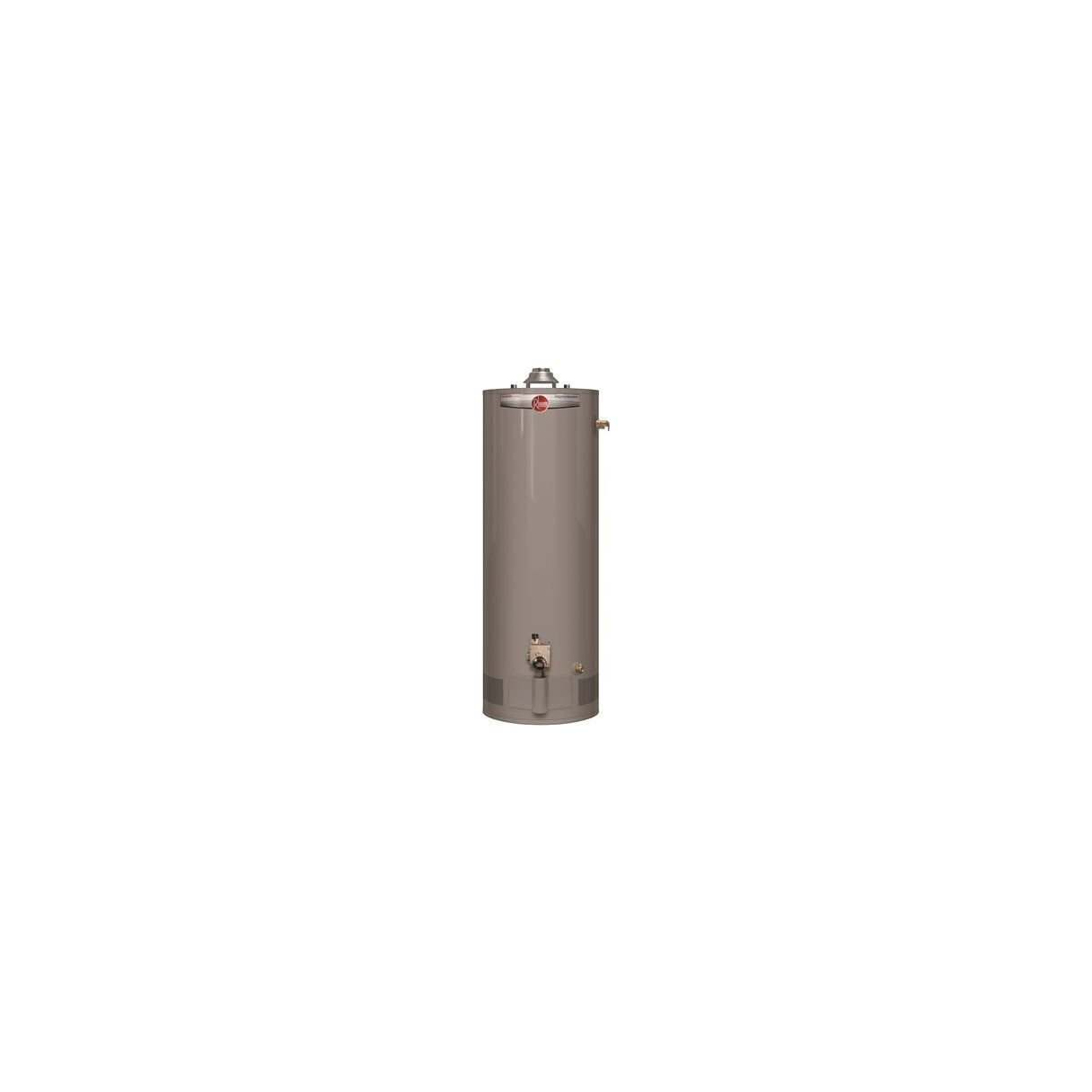

Comprehensive Guide to the Rheem PROG40-38N RH62 Manual
Looking for the Rheem PROG40-38N RH62 manual? You’ve come to the right place! The Rheem Professional Classic series offers reliable hot water solutions for homes with 2-4 people. In this guide, we’ll break down everything you need to know about this 40-gallon natural gas water heater – from installation to maintenance to troubleshooting.
Rheem PROG40-38N RH62 Specifications: What You’re Getting
Before diving into the manual details, let’s understand what makes the Rheem PROG40-38N RH62 a solid choice for homeowners:
- 40-gallon tank capacity
- 38,000 BTU/hour environmentally friendly low NOx burner
- Tall design (61.5″ height, 19″ width, 19″ depth)
- Natural gas powered
- Push-button ignition system
- Self-diagnostic gas control valve
- Premium grade anode rod for tank protection
- Factory-installed temperature and pressure relief valve
- Standard 3/4-inch water connections
- 6-year limited tank and parts warranty
Key Safety Features in the Rheem PROG40-38N RH62 Manual
The Rheem PROG40-38N RH62 manual emphasizes several important safety features that make this model stand out:
- Guardian System™ – Automatically disables the heater if flammable vapor accumulation is detected
- Air/fuel shut-off device – Provides additional protection
- Electronic gas control – Offers improved monitoring and easier service
- Maintenance-free combustion – No filters to clean or replace
Installation Guide: Setting Up Your Rheem PROG40-38N RH62
According to the Rheem PROG40-38N RH62 manual, proper installation is crucial for optimal performance and safety. Let’s break down the key installation points:
Location Requirements
The heater is designed for indoor use only and requires:
- Adequate space for service access (at least 24 inches in front)
- Level surface capable of supporting the filled weight (approximately 450+ lbs)
- Proper ventilation with access to indoor combustion air
- Protection from freezing temperatures
- Nearby water connections and gas line
Venting Options
One of the flexible aspects mentioned in the Rheem PROG40-38N RH62 manual is the venting system:
- Vertical or horizontal venting termination
- Compatible with PVC, ABS, or CPVC vent pipes
- Uses indoor air for combustion
- Includes blower to exhaust flue gases
Electrical Connections
The heater features:
- Standard 120-Volt connections
- Simple wiring requirements outlined in the manual
- No special electrical panel needs in most homes
Operating Your Rheem PROG40-38N RH62: Day-to-Day Usage
The Rheem PROG40-38N RH62 manual provides straightforward instructions for everyday operation:
Lighting the Water Heater
One of the user-friendly features is the push-button ignition system:
- Set the temperature dial to the lowest setting
- Turn the gas control knob to the “OFF” position
- Wait 5 minutes for any gas to clear
- Turn the gas control knob to “PILOT”
- Press and hold the igniter button while pressing the pilot button
- Once the pilot lights, continue holding the pilot button for about 60 seconds
- Release and confirm the pilot stays lit
- Turn gas control knob to “ON”
- Set desired temperature
Temperature Adjustment
The self-diagnostic gas control valve makes temperature adjustment simple:
- The recommended setting is “HOT” (approximately 120°F)
- Higher settings increase scalding risk
- Lower settings may not provide adequate hot water for household needs
- The temperature can be adjusted by turning the dial on the gas control valve
The Rheem PROG40-38N RH62 manual emphasizes that water temperatures above 125°F can cause severe burns or death from scalding.
Maintenance Tips from the Rheem PROG40-38N RH62 Manual
Regular maintenance extends your water heater’s life and maintains efficiency. The manual recommends:
Regular Tank Flushing
To prevent sediment buildup:
- Turn off the power and gas supply
- Turn off the cold water inlet valve
- Connect a garden hose to the drain valve
- Open a hot water faucet in the house to prevent vacuum
- Open the drain valve and let the tank empty completely
- Flush the tank by turning on the cold water inlet valve briefly
- Close the drain valve, disconnect the hose, and refill the tank
- Restore power and gas supply
Anode Rod Inspection
While the Rheem PROG40-38N RH62 comes with a premium grade anode rod, it should still be checked periodically:
- Inspect the anode rod every 2-3 years
- Replace if more than 6 inches of core wire is exposed
- Replacement extends tank life significantly
Temperature and Pressure Relief Valve Testing
For safety:
- Test the T&P valve at least once annually
- Lift and release the test lever to ensure proper operation
- Water should discharge and then stop when the lever is released
- If it fails to operate correctly, replace immediately
Troubleshooting Guide for the Rheem PROG40-38N RH62
The Rheem PROG40-38N RH62 manual includes comprehensive troubleshooting steps for common issues:
No Hot Water
If your water heater isn’t producing hot water:
- Check if the pilot light is out
- Verify gas supply is on and pressure is adequate
- Inspect the thermocouple connection
- Look for error codes on the gas control valve (blinking LED patterns)
- Check for tripped circuit breakers if electrical components aren’t working
Not Enough Hot Water
If hot water runs out too quickly:
- Check for sediment buildup (flush tank if needed)
- Verify temperature setting is appropriate
- Look for crossed hot and cold connections
- Consider household usage patterns and timing
Pilot Light Won’t Stay Lit
For pilot light issues:
- Clean the pilot assembly if dirty
- Check and replace the thermocouple if faulty
- Inspect the gas control valve for damage
- Look for air in the gas line (may need to purge)
Understanding the 6-Year Warranty Coverage
The Rheem PROG40-38N RH62 manual details the warranty coverage:
- Tank: 6-year limited warranty against leaks
- Parts: 6-year limited warranty on component parts
- Labor: Typically 1-year coverage for service calls
To maintain warranty coverage, keep your proof of purchase and register your product promptly. The manual provides instructions for warranty service and claim procedures.
California Residents: Important Regulatory Information
The Rheem PROG40-38N RH62 manual includes specific information for California residents:
This water heater does not meet ultra-low NOx (ULN) emissions requirements. California regulations prohibit the sale, shipment, or installation of this water heater in any air quality district requiring ULN water heaters. If you live in California, check your local air quality district requirements to confirm if you need a ULN model instead.
Finding the Complete Rheem PROG40-38N RH62 Manual
Need the full manual for detailed reference? You can access the complete Rheem PROG40-38N RH62 manual through several channels:
- Inside the packaging of your new water heater
- On the Rheem website under product support
- Through customer service by providing your model number
- On various manual repository websites
The manual contains additional technical specifications, detailed installation templates, parts diagrams, and safety information that every owner should review.
Final Thoughts on the Rheem PROG40-38N RH62 Manual
The Rheem PROG40-38N RH62 manual is an essential resource for anyone installing, operating, or troubleshooting this popular water heater model. With its efficient 38,000 BTU burner, 40-gallon capacity, and robust safety features, this water heater provides reliable performance for typical households.
Regular maintenance as outlined in the manual will ensure years of trouble-free operation. If you’re in the market for a new water heater or need to replace an existing one, the Rheem PROG40-38N RH62 offers a solid combination of performance, safety features, and warranty coverage that makes it worth considering for your home.
