MRCOOL Universal Series MDU18024036: The Ultimate DIY Central Heat Pump System
Looking for a high-efficiency central heat pump system you can actually install yourself? The MRCOOL Universal Series MDU18024036 might be exactly what you need. This innovative system brings together exceptional performance, remarkable efficiency, and DIY-friendly installation that most homeowners can handle without specialized HVAC training.
I’ve seen a lot of HVAC systems over the years, but few offer the flexibility and user-friendly design of the MRCOOL Universal Series. Let’s dive into what makes this system special and why it might be the perfect choice for your home.
MRCOOL Universal Series MDU18024036: Overview and Key Features

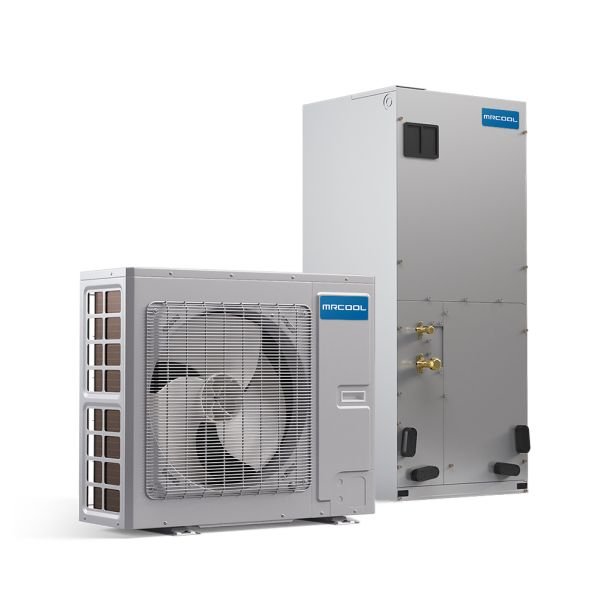

The MRCOOL Universal Series MDU18024036 is a complete central ducted heat pump split system that combines a full-size air handler with a slim condenser unit. This 3-ton system delivers an impressive 18 SEER efficiency rating, making it significantly more efficient than older HVAC systems you might be replacing.
What truly separates this system from competitors is its flexible design. The 3-ton condenser can be field-converted to a 2-ton system with a simple dip switch setting change, giving you versatility that’s rare in the HVAC world.
Key features include:
- 18 SEER efficiency rating (16 SEER2) with 10.0 HSPF
- R410A refrigerant
- 36,000 BTU cooling and heating capacity
- Variable-speed inverter technology
- Quick-connect fittings for DIY installation
- Multi-positional design (upflow and horizontal installation)
- Third-party thermostat compatibility
- Impressive temperature operating range (-22°F to 75°F for heating, 5°F to 129°F for cooling)
What Sets the MRCOOL Universal Series MDU18024036 Apart
There’s a reason why MRCOOL has developed such a loyal following among DIY enthusiasts. The Universal Series takes everything great about their popular mini-split systems and adapts it to a central ducted system that works with traditional ductwork.
The standout advantage is the quick-connect technology. Traditional HVAC systems require specialized tools, vacuum pumps, and technical knowledge to connect refrigerant lines. The MRCOOL system’s pre-charged line sets (available up to 50 feet) use quick-connect fittings that eliminate these requirements. You simply connect the lines, open the valves, and you’re good to go.
The system also features MRCOOL’s temperature compensation technology, which automatically adjusts performance based on outdoor conditions. This means consistent comfort regardless of what Mother Nature throws your way.
Installation Process for the MRCOOL Universal Series MDU18024036
One of the biggest selling points of the MRCOOL Universal Series is how accessible installation is for homeowners with basic DIY skills. Here’s a simplified overview of what’s involved:
- Mount the indoor air handler (48.2″ H × 21.3″ W × 21.3″ D, weighing 217 lbs)
- Position the outdoor condenser unit (32.3″ H × 37″ W × 18.1″ D, weighing 156 lbs)
- Connect the units using the pre-charged line sets
- Complete the electrical connections (requires 230V, 1 Phase, 60Hz)
- Connect the thermostat of your choice
- Open the refrigerant valves
- Power up and test the system
What you won’t need: vacuum pumps, manifold gauges, refrigerant handling licenses, or specialized HVAC tools. That’s the beauty of this system.
The indoor unit supports both upflow and horizontal installations, giving you flexibility based on your available space. Just note that downflow installations aren’t supported with this model.
Performance and Efficiency of the MRCOOL Universal Series MDU18024036
Let’s talk performance. The MDU18024036 delivers 36,000 BTUs of cooling and heating capacity, ideal for most homes in the 1,500-2,000 square foot range (depending on your climate, insulation, and other factors).
The variable-speed inverter technology is a game-changer for both comfort and efficiency. Unlike traditional systems that simply turn on and off at full power, the MRCOOL system can run at different speeds to maintain your desired temperature more precisely while using less energy.
Even in extreme cold, this system performs admirably, maintaining 80% of its BTU output at -4°F and continuing to function in temperatures as low as -22°F. This makes it viable as a primary heat source in most U.S. climate zones.
With a maximum CFM of 1000, the air handler provides excellent air distribution throughout your home. The indoor unit operates at around 49 dBA, while the outdoor unit runs at about 60 dBA – comparable to other central systems on the market.
Is the MRCOOL Universal Series MDU18024036 Right for Your Home?
The ideal candidate for this system is a homeowner who:
- Wants to upgrade to a high-efficiency heat pump system
- Prefers an all-electric HVAC solution (no gas required)
- Has existing ductwork in good condition
- Enjoys DIY projects and wants to save on installation costs
- Needs a 2-3 ton capacity system
- Values warranty protection (10 years with online registration)
If that sounds like you, the MRCOOL Universal Series MDU18024036 deserves serious consideration.
Optional Accessories and Enhancements
While the MRCOOL Universal Series comes complete as a system, there are several accessories worth considering:
- Pre-charged line sets in various lengths (up to 50 feet)
- Electric backup heat kits (available in 5kW, 8kW, and 10kW options)
- Smart thermostats (the system is compatible with most third-party options)
- High-efficiency air filters for improved indoor air quality
The fireproof electrical box included with the system adds an extra safety measure that’s particularly valuable for DIY installations.
Common Questions About the MRCOOL Universal Series MDU18024036
As with any major HVAC purchase, you likely have questions. Here are answers to some of the most common ones:
Does the MRCOOL Universal Series require professional maintenance?
While DIY-friendly, the system will benefit from regular maintenance. Basic filter changes and keeping the outdoor unit clean can be handled yourself, but occasional professional check-ups are recommended for optimal performance and longevity.
Can I really install this system myself?
Yes, if you have basic DIY skills and can follow detailed instructions. The system is designed specifically for homeowner installation, though you may want a helper for moving the heavier components. Some parts of the installation (particularly electrical work) may require a licensed professional depending on your local codes.
What’s the difference between SEER and SEER2 ratings?
SEER2 is a newer, more stringent efficiency testing standard. This system’s 18 SEER rating equates to 16 SEER2, which still qualifies as high-efficiency by current standards.
Will this system work with my existing ductwork?
In most cases, yes. The MRCOOL Universal Series is designed to work with standard residential ductwork. However, your existing ducts should be properly sized and sealed for optimal performance.
What about warranty protection?
MRCOOL offers a 10-year warranty with online registration, giving you peace of mind with your investment. This covers major components against manufacturer defects.
Final Thoughts on the MRCOOL Universal Series MDU18024036
The HVAC industry has long been dominated by professional-only installation systems, but MRCOOL is changing that paradigm. The Universal Series MDU18024036 brings high-efficiency central heating and cooling within reach of motivated DIYers.
At around $3,555, this system represents a significant investment, but when you factor in the savings on professional installation (often $3,000-$5,000 for comparable systems), the value proposition becomes clear. Add in the ongoing energy savings from the 18 SEER efficiency rating, and the long-term economics make sense for many homeowners.
If you’re considering a central HVAC upgrade and enjoy tackling home improvement projects, the MRCOOL Universal Series MDU18024036 offers an impressive combination of performance, efficiency, and DIY-friendly design that’s hard to beat.
Whether you’re replacing an aging system or installing central air for the first time, this innovative heat pump deserves a spot on your shortlist. The blend of cutting-edge technology with accessible installation creates a unique option in today’s HVAC marketplace.
