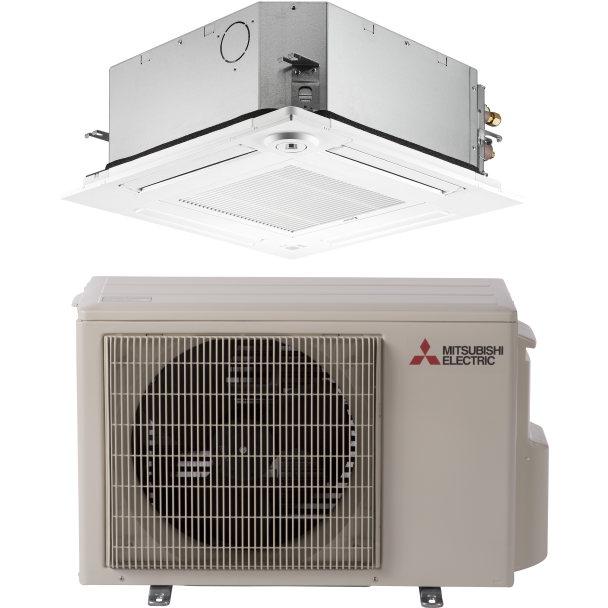

Comprehensive Guide to the Mitsubishi SLZ-KF12NA: A Premium Ceiling Cassette Mini Split Solution
The Mitsubishi SLZ-KF12NA represents one of the most versatile ceiling cassette mini split options available today. If you’re looking for an efficient heating and cooling solution that doesn’t take up valuable wall space, this 12,000 BTU system deserves your attention. Let’s dive into everything you need to know about this impressive unit and why it might be the perfect fit for your space.
What Makes the SLZ-KF12NA Stand Out Among Ceiling Cassette Options?
The SLZ-KF12NA is engineered with Mitsubishi’s renowned attention to detail and performance. This ceiling-recessed cassette heat pump delivers 12,000 BTU of cooling capacity and 13,000 BTU of heating capacity, making it ideal for small to medium-sized rooms where wall-mounted units aren’t practical or desired.
With an impressive 22 SEER efficiency rating and 11.4 HSPF, this system delivers exceptional energy performance that can significantly reduce your utility bills compared to traditional HVAC systems. The variable-speed rotary compressor adjusts its output based on actual demand, maintaining precise temperature control while minimizing energy consumption.
SLZ-KF12NA Technical Specifications at a Glance
- Cooling Capacity: 12,000 BTU
- Heating Capacity: 13,000 BTU
- Energy Efficiency: 22 SEER, 13.3 EER, 11.4 HSPF
- Airflow Range: 207-335 CFM
- Sound Levels: Indoor unit 25-34 dBA, Outdoor unit 49-51 dBA
- Operating Temperature Range: Cooling 14°F-115°F, Heating -4°F-75°F
- Electrical: 208/230V, Single Phase, 60 Hz
What truly sets the SLZ-KF12NA apart is its ceiling-recessed design that frees up valuable wall and floor space while providing 360-degree airflow distribution for more even comfort throughout the room.
Installation and Compatibility of the SLZ-KF12NA System
The Mitsubishi SLZ-KF12NA offers remarkable installation flexibility that makes it suitable for various ceiling types. This unit can be installed in both standard drop ceilings and drywall ceilings, giving you options regardless of your building’s construction.
Key Installation Features of the SLZ-KF12NA
One of the most convenient aspects of the SLZ-KF12NA is its built-in condensate lift mechanism. This pump can raise condensate water up to 33 inches, eliminating the need for additional pumps in most installations and simplifying the drainage setup process.
The system comes pre-charged with R410A refrigerant for up to 25 feet of line set, though it can accommodate line sets up to 65 feet in length with additional refrigerant. With liquid line size of 1/4″ and suction line of 3/8″, this unit follows standard mini-split connection sizes that most HVAC installers are familiar with.
The indoor unit’s compact dimensions (22-7/16″ width and depth, 9-21/32″ height) allow it to fit comfortably between ceiling joists in most construction, while the included grille (25-5/8″ square with only 13/16″ thickness) provides a sleek, unobtrusive appearance once installed.
Performance and Comfort Features of the SLZ-KF12NA
Mitsubishi designed the SLZ-KF12NA with comfort as a primary focus, incorporating several features that enhance the user experience beyond simple temperature control.
Advanced Comfort Technology
The system’s inverter technology constantly monitors room temperature and adjusts compressor speed accordingly, eliminating the temperature swings common with conventional systems. This results in more consistent comfort and improved energy efficiency.
With a dehumidification rate of 0.35 gallons per hour, the SLZ-KF12NA effectively manages humidity levels while cooling, creating a more comfortable environment especially in humid climates.
The whisper-quiet operation (as low as 25 dBA on the indoor unit) means you’ll barely notice it’s running, making it perfect for bedrooms, offices, or other noise-sensitive environments.
Airflow Distribution and Customization
The four-way cassette design delivers balanced airflow in all directions, eliminating hot or cold spots common with traditional systems. For enhanced comfort customization, the unit can be paired with an optional 3D i-see sensor (available as an upgrade to the standard grille) that detects occupancy and temperature variations across the room, adjusting airflow patterns for optimal comfort.
Control Options and Smart Features for the SLZ-KF12NA
Controlling your SLZ-KF12NA couldn’t be more convenient with multiple options available to suit your preferences.
While a controller is not included with the base unit, the system is compatible with various Mitsubishi control options, including simple wireless remotes, wired wall controllers, and centralized control systems for multi-unit installations.
For the ultimate in convenience, the optional Kumo Cloud adapter enables smartphone control from anywhere with internet access. This allows you to adjust settings, monitor performance, and even receive maintenance alerts through a user-friendly app.
Durability and Warranty Protection for Your SLZ-KF12NA Investment
Mitsubishi has engineered the SLZ-KF12NA for exceptional durability and reliability. The system can operate in heating mode at outdoor temperatures as low as -4°F, making it suitable for most climate zones across North America.
The quality construction is backed by Mitsubishi’s confidence in their product with a standard 5-year parts and 7-year compressor warranty. When properly installed and registered online, this coverage extends to an impressive 10-year warranty on both parts and compressor, providing long-term peace of mind for your investment.
Maintenance Considerations for Long-Term Performance
Maintaining your SLZ-KF12NA is straightforward and requires minimal effort. The system includes washable, long-life filters that can be easily accessed through the grille. Regular cleaning of these filters (typically every 3-6 months depending on usage) helps maintain optimal airflow and efficiency.
Annual professional inspection is recommended to ensure all components are functioning properly and to address any potential issues before they become problems.
Is the SLZ-KF12NA the Right Choice for Your Space?
The Mitsubishi SLZ-KF12NA is ideal for small rooms (approximately 400-600 square feet depending on climate, insulation, and other factors). It’s particularly well-suited for applications where wall space is limited or where aesthetic considerations make a ceiling-mounted unit preferable.
Perfect Applications for the SLZ-KF12NA
- Home offices or bedrooms with limited wall space
- Small retail environments where wall displays are important
- Restaurant dining areas where unobtrusive HVAC is desired
- Small conference rooms or professional offices
- Studio apartments or condominiums with open floor plans
The Energy Star certification makes this unit eligible for various utility rebates and incentives, potentially reducing your overall investment cost.
Frequently Asked Questions About the SLZ-KF12NA
Does the SLZ-KF12NA come with the ceiling grille included?
Yes, the SLZ-KF12NA system includes the standard ceiling cassette grille. However, the enhanced grille with the 3D i-see sensor for improved comfort control is available as an optional upgrade.
Can the SLZ-KF12NA be used in a multi-zone system?
The SLZ-KF12NA is available in both single-zone and multi-zone configurations. When paired with compatible Mitsubishi multi-zone outdoor units, it can be integrated into a system with other indoor units of various styles.
What’s the difference between the SLZ-KF12NA and other Mitsubishi ceiling cassette models?
The SLZ-KF12NA belongs to Mitsubishi’s M-Series line, designed primarily for residential and light commercial applications. For larger commercial spaces, Mitsubishi offers the PLFY series with higher capacities and additional commercial features.
Final Verdict on the Mitsubishi SLZ-KF12NA
The Mitsubishi SLZ-KF12NA represents an excellent balance of performance, efficiency, and aesthetics for those seeking a ceiling-mounted mini-split solution. With its 22 SEER rating, versatile installation options, and Mitsubishi’s reputation for quality, it delivers exceptional value for residential and light commercial applications.
The system’s ability to operate effectively in extreme temperatures, coupled with its comprehensive warranty protection, makes it a smart long-term investment for year-round comfort. If you’re looking for an unobtrusive yet powerful heating and cooling solution that frees up your wall space while providing consistent comfort, the SLZ-KF12NA deserves serious consideration.
