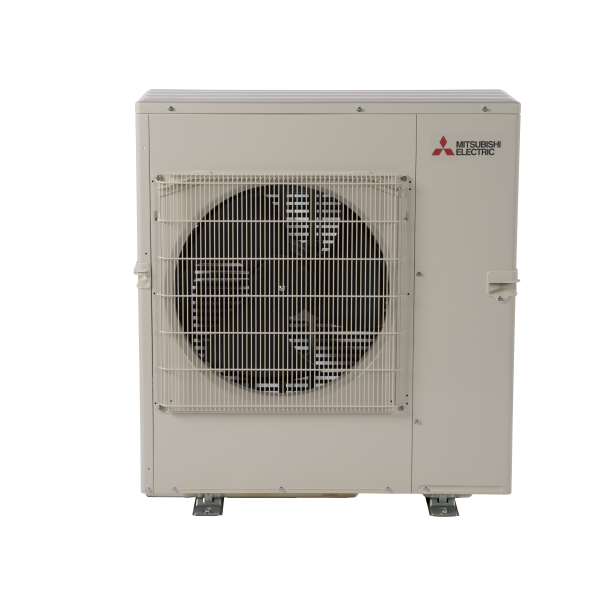

Comprehensive Guide to the Mitsubishi MXZ-5C42NA2-U1: Everything You Need to Know
Looking for a powerful, multi-zone solution for your home or business heating and cooling needs? The Mitsubishi MXZ-5C42NA2-U1 is a game-changing heat pump condenser that’s revolutionizing how we approach climate control in multiple spaces. Let me walk you through everything you need to know about this impressive system that’s changing the HVAC landscape.
What Makes the MXZ-5C42NA2-U1 Stand Out in the Multi-Zone Market?
The Mitsubishi MXZ-5C42NA2-U1 isn’t just another condenser – it’s a powerhouse designed specifically for multi-zone applications. With a robust 42,000 BTU capacity, this unit can efficiently manage multiple indoor air handlers simultaneously, making it perfect for homes or businesses with several rooms requiring individual climate control.
What sets this unit apart is its ability to replace multiple single-zone condensers, freeing up valuable space in your yard or around your property. Instead of cluttering your exterior with several units, this single condenser handles it all, creating a cleaner, more streamlined installation.
Key Technical Specifications of the MXZ-5C42NA2-U1
- Cooling Capacity: 40,500 BTU
- Heating Capacity: 45,000 BTU
- SEER Rating: 18-20 (impressive efficiency)
- HSPF: 10.3
- EER: 9.2
- Refrigerant Type: R410A
- Dimensions: 41-9/32″ (H) x 37-13/32″ (W) x 13″ (D)
- Weight: 189 lbs
The Impressive Versatility of the MXZ-5C42NA2-U1 System
One of the most compelling aspects of the MXZ-5C42NA2-U1 is its versatility. This unit supports up to five indoor air handlers, allowing you to customize climate control in multiple zones throughout your property. Whether you’re looking to cool a large open-concept living space or control temperatures in individual bedrooms, this system adapts to your needs.
Zone Compatibility and Performance of the MXZ-5C42NA2-U1
The MXZ-5C42NA2-U1 truly shines when it comes to zone management. Each connected air handler can be controlled independently, giving you precise temperature control in every room. This means you can keep your home office cool during the day while maintaining a warmer temperature in rarely used guest rooms – ultimately saving energy and reducing your utility bills.
When selecting indoor units, it’s important to note that the total BTU rating across all air handlers should generally align with the condenser’s 42,000 BTU capacity. However, some certified pairings might exceed this rating slightly, which is intentional in the design. Just be aware that exceeding the rating too much could potentially affect heating and cooling speed and limit the output of each air handler when running simultaneously.
The Technological Advantages of the MXZ-5C42NA2-U1
This isn’t your standard HVAC equipment. The MXZ-5C42NA2-U1 incorporates cutting-edge technology that puts it ahead of conventional systems.
Variable Speed Inverter Technology in the MXZ-5C42NA2-U1
At the heart of the MXZ-5C42NA2-U1 is its variable speed inverter-driven compressor. Unlike traditional compressors that operate at full capacity or not at all, this inverter technology allows the system to run at various speeds depending on the actual cooling or heating needs.
This provides several benefits:
- More precise temperature control
- Improved electrical efficiency
- Reduced energy consumption
- Quieter operation
- Less wear and tear on components
The result is a system that maintains more consistent comfort levels while using less energy – a win-win for both comfort and your utility bills.
Extreme Weather Performance of the MXZ-5C42NA2-U1
The Mitsubishi MXZ-5C42NA2-U1 is engineered to perform in challenging weather conditions. With enhanced comfort capabilities down to -4°F, this system continues to provide reliable heating even during harsh winter conditions.
The operational temperature ranges are impressive:
- Heating: 5°F to 65°F outdoor temperature
- Cooling: 14°F to 115°F outdoor temperature
This wide operational range means the system remains functional throughout most climate conditions across North America, making it a versatile choice for virtually any region.
Quiet Operation Features of the MXZ-5C42NA2-U1
Nobody wants their peaceful backyard or quiet bedroom disrupted by a noisy HVAC system. The MXZ-5C42NA2-U1 addresses this concern with remarkably quiet operation, producing only 56-58 dBA – similar to the volume of a normal conversation. This low noise level ensures your comfort isn’t compromised by disruptive sounds.
Installation Considerations for the MXZ-5C42NA2-U1
While the MXZ-5C42NA2-U1 offers tremendous flexibility, there are some important installation factors to consider:
Line Set Requirements for the MXZ-5C42NA2-U1
The system comes pre-charged for up to 98 feet of line set, with maximum line set length capabilities of 82 feet for any individual line and a total system line length of up to 262 feet. This gives installers plenty of flexibility when positioning indoor units throughout a building.
The line connections include:
- Liquid Line: 1/4″ (5 connections)
- Suction Line: 1/2″ (1 connection), 3/8″ (4 connections)
Electrical Requirements for the MXZ-5C42NA2-U1
The unit requires:
- 208/230V, Single Phase, 60 Hz power supply
- Minimum breaker size: 32.5 amps
- Maximum breaker size: 40 amps
Always ensure your electrical system can support these requirements before installation.
Intelligent Control Options for the MXZ-5C42NA2-U1
Modern HVAC systems are increasingly about convenience and connectivity, and the MXZ-5C42NA2-U1 doesn’t disappoint in this area.
For the ultimate in convenience, many compatible air handlers can be paired with Mitsubishi’s Kumo cloud WiFi adapter, allowing you to control your system from anywhere with an internet connection. This means adjusting temperatures before arriving home or checking system status while away – all from your smartphone or tablet.
Keep in mind that in most applications, you’ll need one thermostat or adapter per indoor air handler you want to control independently.
Warranty Protection for Your MXZ-5C42NA2-U1 Investment
Mitsubishi stands behind the quality of the MXZ-5C42NA2-U1 with solid warranty coverage. Standard coverage includes 5 years on parts and 7 years on the compressor. However, when properly registered online after installation (following state and local codes), this coverage extends to an impressive 10 years for both parts and compressor.
This extended warranty protection provides peace of mind and protects your investment for the long term.
Is the MXZ-5C42NA2-U1 Right for Your Project?
The Mitsubishi MXZ-5C42NA2-U1 represents an excellent solution for many multi-zone applications, but it’s important to assess whether it aligns with your specific needs:
Consider this system if:
- You need to heat/cool up to five separate zones
- You want independent temperature control in multiple rooms
- You’re looking for energy-efficient operation
- Space for outdoor units is limited
- You need a system that performs in extreme temperatures
Remember that this condenser must be paired with compatible air handlers, controllers, and proper installation equipment to function correctly. Working with a qualified HVAC professional is essential for proper system design and installation.
Final Thoughts on the MXZ-5C42NA2-U1
The Mitsubishi MXZ-5C42NA2-U1 represents the cutting edge of multi-zone HVAC technology. With its powerful performance, versatile zoning capabilities, energy-efficient operation, and quiet functionality, it’s an excellent choice for those seeking premium climate control across multiple spaces.
Whether you’re upgrading existing systems or planning a new installation, the MXZ-5C42NA2-U1 delivers the performance, efficiency, and reliability that HVAC professionals and homeowners alike have come to expect from Mitsubishi. With its impressive specifications and innovative features, this unit continues to be a top contender in the multi-zone heat pump market.
Ready to experience the comfort and efficiency of the Mitsubishi MXZ-5C42NA2-U1 for yourself? Consider this powerful system for your next multi-zone HVAC project and enjoy the perfect balance of performance and efficiency.
