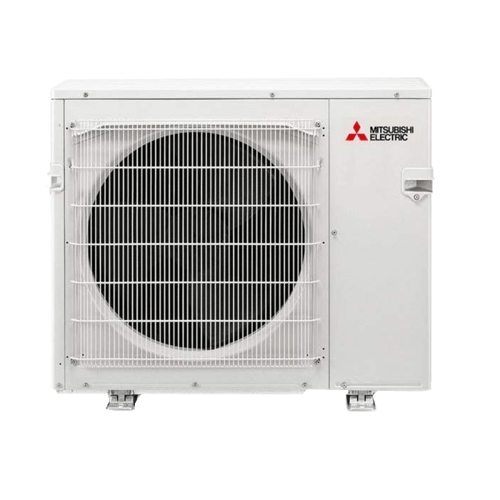

Understanding the Mitsubishi MXZ-3C30NA2: Your Complete Guide to Multi-Zone Heat Pump Condensers
Looking for a powerful multi-zone heat pump solution? The Mitsubishi MXZ-3C30NA2 offers exceptional performance for homeowners seeking efficient climate control across multiple rooms. As a versatile 30,000 BTU system, this unit delivers customizable comfort while minimizing outdoor equipment footprint.
What Makes the MXZ-3C30NA2 Different from Single-Zone Systems?
The MXZ-3C30NA2 stands out as a premium multi-zone solution that can connect to multiple indoor air handlers from a single outdoor unit. This means you can have customized temperatures in different rooms while only needing one exterior condenser. Unlike single-zone setups that require separate outdoor units for each room, this system saves valuable outdoor space and offers a cleaner exterior appearance.
For homeowners with limited yard space or those concerned about aesthetic appeal, the Mitsubishi MXZ-3C30NA2 presents the perfect balance of performance and practicality.
Core Technical Specifications of the MXZ-3C30NA2
- Cooling Capacity: 28,400 BTU
- Heating Capacity: 28,600 BTU
- SEER Rating: 18-20 (highly efficient)
- HSPF: 10.6
- EER: 10.6
- Sound Level: 52-56 dBA (impressively quiet operation)
- Dimensions: 37″ W x 13″ D x 31″ H
- Weight: 140 lbs
Why the Variable Speed Inverter Technology in the MXZ-3C30NA2 Matters
The heart of the MXZ-3C30NA2 is its variable-speed inverter-driven compressor. Unlike conventional systems that cycle on and off at full capacity, this advanced technology allows the system to adjust its output based on real-time demand. The result? Precise temperature control, reduced energy consumption, and significantly quieter operation.
Think of it like driving a car – traditional systems are either flooring the gas pedal or completely stopped, while the MXZ-3C30NA2 can cruise at exactly the speed needed for optimal comfort.
Energy Efficiency Benefits of the MXZ-3C30NA2
With SEER ratings between 18-20, the MXZ-3C30NA2 delivers impressive efficiency that translates directly to lower utility bills. The system’s ability to modulate capacity means it only uses exactly the energy needed to maintain comfort, avoiding the wasteful start-stop cycles of conventional equipment.
For the average homeowner, this can represent hundreds of dollars in annual energy savings while providing superior comfort throughout the seasons.
Extreme Temperature Performance of the MXZ-3C30NA2
Unlike many heat pumps that struggle in extreme conditions, the MXZ-3C30NA2 maintains reliable performance across an impressive temperature range:
- Cooling operation: 14°F to 115°F outdoor temperature
- Heating operation: 5°F to 65°F outdoor temperature
- Enhanced comfort technology down to -4°F
This exceptional range means you’ll stay comfortable even during intense summer heat waves or frigid winter conditions. For homeowners in variable climate regions, this versatility eliminates the need for supplemental heating or cooling systems.
Installation Flexibility with the MXZ-3C30NA2
The MXZ-3C30NA2 offers remarkable installation flexibility with:
- Pre-charged refrigerant for up to 98′ of line length
- Maximum line set length of 82′
- Maximum system line length of 230′
- Multiple line connections: 1/4″ liquid lines (3), 1/2″ suction line (1), 3/8″ suction lines (2)
These specifications allow HVAC contractors to position the outdoor unit in the optimal location while still reaching all desired indoor zones effectively.
Pairing Indoor Units with Your MXZ-3C30NA2
The MXZ-3C30NA2 supports multiple indoor units, giving you flexibility in your home comfort design. When selecting indoor units, remember:
The total BTU rating of all connected indoor units should generally match or slightly exceed the condenser’s 30,000 BTU capacity. In certified pairings, higher total BTU counts are sometimes acceptable but may reduce simultaneous operation efficiency if all zones call for full capacity at once.
Indoor units can be mixed and matched based on the specific needs of each room, allowing you to create a truly customized comfort system.
Control Options for the MXZ-3C30NA2
Today’s homeowners expect convenient control options, and the MXZ-3C30NA2 delivers with compatibility with various Mitsubishi control systems:
- Standard Mitsubishi thermostats
- Kumo Cloud WiFi adapters for remote access and control
- Compatibility with various control adapters
The Kumo Cloud WiFi adapter is particularly popular as it allows you to control your system from anywhere using a smartphone app. This means you can adjust temperatures before arriving home or monitor system performance while away.
MXZ-3C30NA2 Warranty Coverage
Mitsubishi stands behind the MXZ-3C30NA2 with comprehensive warranty coverage:
- Standard warranty: 5 years on parts, 7 years on compressor
- Extended warranty with online registration: 10 years on both parts and compressor
To qualify for the extended warranty, installation must comply with all state and local codes, and the system must be registered online with Mitsubishi. This exceptional coverage reflects Mitsubishi’s confidence in the MXZ-3C30NA2’s durability and performance.
Electrical Requirements for the MXZ-3C30NA2
Before installation, it’s important to understand the electrical specifications of the MXZ-3C30NA2:
- Power supply: 208/230V, 1 Phase, 60 Hz
- Minimum breaker size: 22.1 amps
- Maximum breaker size: 25 amps
A qualified HVAC installer can ensure your electrical system is properly configured to support the MXZ-3C30NA2’s requirements.
Frequently Asked Questions About the MXZ-3C30NA2
How many zones can the MXZ-3C30NA2 support?
The MXZ-3C30NA2 is designed to support up to three independent zones, each with its own indoor air handler and temperature control.
What is the noise level of the MXZ-3C30NA2?
The outdoor unit operates at just 52-56 dBA, making it significantly quieter than many conventional heat pump systems. This low noise level means it won’t disturb outdoor gatherings or sleeping areas near the installation.
Can the MXZ-3C30NA2 provide heating in very cold weather?
Yes! The MXZ-3C30NA2 delivers effective heating performance down to 5°F and includes enhanced comfort technology for operation down to -4°F. This makes it suitable for most climate zones across North America.
Is the MXZ-3C30NA2 ENERGY STAR rated?
While this specific model doesn’t carry the ENERGY STAR designation, its 18-20 SEER rating still places it well above minimum efficiency standards and delivers excellent energy performance.
Is the Mitsubishi MXZ-3C30NA2 Right for Your Home?
The Mitsubishi MXZ-3C30NA2 represents an excellent investment for homeowners looking to efficiently heat and cool multiple zones from a single outdoor unit. Its 30,000 BTU capacity makes it ideal for multi-room applications, while the variable-speed inverter technology ensures optimal comfort and efficiency year-round.
With flexible installation options, impressive temperature range capabilities, and comprehensive warranty coverage, the MXZ-3C30NA2 delivers the performance and reliability Mitsubishi is known for. Whether you’re upgrading an existing system or designing climate control for a new space, the MXZ-3C30NA2 provides the perfect balance of efficiency, comfort, and value.
