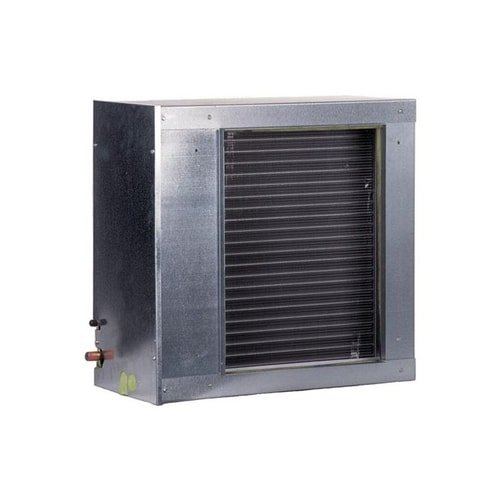

Comprehensive Guide to the Goodman CSCF3036N6 Evaporator Coil
Looking for a reliable evaporator coil that fits in tight spaces without breaking the bank? The Goodman CSCF3036N6 horizontal slab evaporator coil might be exactly what you need. This 2.5 to 3-ton coil combines efficiency, durability, and versatility in a low-profile package that’s perfect for challenging installation environments.
What Makes the CSCF3036N6 Stand Out in the HVAC Market?
The HVAC world is crowded with options, but the CSCF3036N6 has earned its reputation through thoughtful design. Its primary selling point? Low airflow resistance combined with a space-saving profile. If you’ve ever struggled to fit a standard coil in a tight attic or crawlspace, you’ll appreciate how this model slips into spaces where others simply won’t go.
This horizontal slab coil isn’t just about fitting into small spaces though – it’s built to deliver consistent performance while keeping costs reasonable. That’s a balance many manufacturers struggle to achieve.
Technical Specifications of the Goodman CSCF3036N6
Before diving into a purchase, you need to know exactly what you’re getting. The CSCF3036N6 comes with specs that make it suitable for a wide range of residential applications:
- Capacity: 2.5 to 3 tons
- Configuration: Horizontal installation
- Refrigerant Compatibility: Works with both R410A and R22
- Dimensions: 33.5″ width × 25″ height × 12″ depth
- Weight: 53 pounds
- Connections: 3/8″ liquid line and 3/4″ suction line (copper sweat)
- Expansion Device: Check flowrater
The coil features copper tubing with aluminum fins, creating an efficient heat transfer system that’s become the industry standard for durability and performance.
Compatibility and System Requirements for the CSCF3036N6
It’s crucial to understand that the CSCF3036N6 isn’t a standalone unit. To function properly, you’ll need:
- A compatible furnace or air handler (sold separately)
- A matching condenser unit (sold separately)
The CSCF3036N6 is designed to work with both air conditioning-only setups and heat pump systems, giving you flexibility in your installation choices. Just remember, this isn’t a replacement coil for a single-piece air handler – it’s designed for split-system applications.
When matching with a condenser, note that the coil will typically be either the same size or slightly larger than the condenser’s tonnage to maintain system efficiency. This sizing relationship helps optimize the overall performance of your HVAC system.
Installation Advantages of the Goodman CSCF3036N6 Evaporator Coil
Let’s be real – installation can be a pain point for many HVAC projects. The CSCF3036N6 addresses several common challenges:
Space-Saving Design Features
The low-profile horizontal slab configuration means this coil can fit in spaces where taller A-coils simply won’t work. Think about those tight attics, crawlspaces, or mechanical closets where every inch matters. At just 12 inches deep, this coil gives you installation options that bulkier units don’t offer.
The copper sweat connections are positioned for relatively straightforward access, helping reduce installation time and complications. For HVAC pros working in challenging environments, these details make a meaningful difference in job efficiency.
Drain Pan Innovation in the CSCF3036N6
One thoughtful feature that deserves attention is the factory-installed drain pan. Made from high-temperature thermoplastic material, it’s designed to resist rust while handling condensate efficiently. The pan includes multiple drain connections, giving installers options based on the specific layout requirements.
This drain pan design becomes especially valuable in high-humidity environments where condensate management is a critical concern. The ability to withstand high temperatures also means fewer worries about potential warping or damage over time.
Long-Term Reliability of the Goodman CSCF3036N6
Durability matters in HVAC components. Nobody wants to replace an evaporator coil prematurely, especially considering the labor involved. The CSCF3036N6 addresses reliability through several design choices:
- Copper tubing paired with aluminum fins for efficient heat transfer and corrosion resistance
- Rust-resistant drain pan that handles high temperatures without degrading
- Simple mechanical design with fewer potential failure points
These features contribute to a coil that’s built to handle continuous operation in varying conditions. While no HVAC component lasts forever, the construction quality here suggests you can expect years of trouble-free service when properly maintained.
Warranty Protection for Your CSCF3036N6 Investment
Goodman stands behind this evaporator coil with a solid warranty package. When installed according to state and local codes, paired with a compatible R410A condenser, and registered online through the manufacturer, the CSCF3036N6 comes with a 10-year parts warranty.
This warranty coverage provides valuable peace of mind for both contractors and homeowners. Just remember that proper registration is required to activate the full warranty term, so don’t skip that important step after installation.
Performance Considerations for the CSCF3036N6 Evaporator Coil
How does the CSCF3036N6 perform in real-world conditions? The design prioritizes low airflow resistance, which has several practical benefits:
- Reduced strain on the blower motor
- Lower operating noise in many installations
- Potentially reduced energy consumption
The check flowrater expansion device helps regulate refrigerant flow effectively, maintaining efficient operation across varying conditions. While this isn’t the most advanced expansion device on the market, it’s a reliable choice that’s well-suited to the applications this coil is designed for.
Energy Efficiency and the CSCF3036N6
The CSCF3036N6’s design contributes to energy efficiency in several ways. The low airflow resistance means your blower doesn’t need to work as hard to move air through the system. Additionally, the efficient heat exchange properties of the copper/aluminum coil construction help maximize cooling output while minimizing energy input.
Remember though, the overall efficiency of your system depends on proper matching with your condenser unit and appropriate installation. The CSCF3036N6 is one component in a larger system, and achieving optimal efficiency requires considering how all components work together.
Is the Goodman CSCF3036N6 Right for Your Project?
The CSCF3036N6 is well-suited for many applications, but it’s not necessarily the perfect choice for every installation. Consider these factors when deciding if it’s right for your needs:
Ideal Applications for the CSCF3036N6
This coil excels in situations where:
- Space constraints make a horizontal slab configuration necessary
- The application requires 2.5 to 3 tons of cooling capacity
- You’re working with either heat pump or AC-only systems
- Budget considerations are important but you don’t want to compromise quality
- Low-resistance airflow is desired
For residential installations in particular, the combination of performance, size, and price point makes the CSCF3036N6 a compelling option.
Final Verdict on the CSCF3036N6 Evaporator Coil
The Goodman CSCF3036N6 delivers a balanced package that addresses the needs of many HVAC applications. It’s not loaded with premium features, but it offers reliable performance, installation flexibility, and durability at a price point that makes sense for budget-conscious projects.
For contractors and HVAC professionals looking for a dependable horizontal slab coil that won’t give you headaches during installation or callback issues down the road, the CSCF3036N6 deserves serious consideration. Its combination of practical design, reasonable cost, and Goodman’s warranty protection makes it a solid choice for many residential cooling applications.
Whether you’re replacing an existing coil or designing a new system, the CSCF3036N6 offers the essential features and reliability that have made Goodman a trusted name in the HVAC industry. The horizontal slab design may be exactly what you need for your next challenging installation.
