The Ultimate Guide to Goodman B1809913S Control Board: Everything You Need to Know
Looking for information about the b1809913s control board for your Goodman furnace? You’ve come to the right place. This essential component is the brain of many Goodman heating systems, and understanding it can save you time, money, and potentially prevent those freezing nights without heat.
What Exactly is the Goodman B1809913S Control Board?

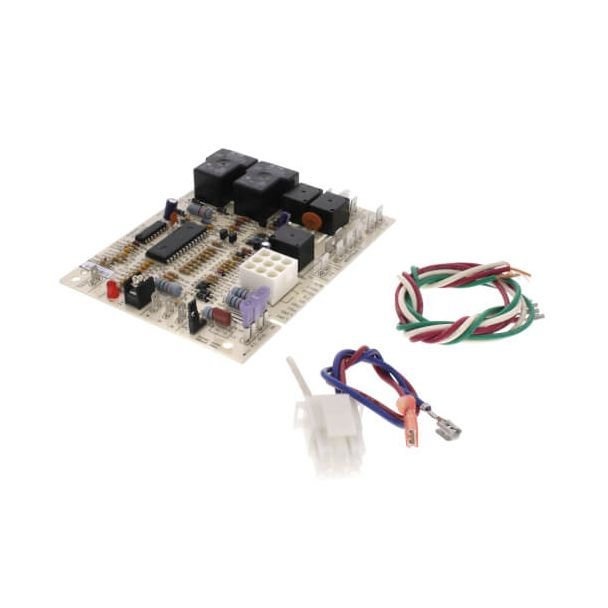

The b1809913s is a genuine OEM Hot Surface Ignition (HSI) integrated control board designed specifically for Goodman furnaces. This isn’t just any circuit board—it’s the command center that controls the operation of your heating system, managing everything from ignition sequences to safety shutoffs.
What makes the b1809913s special is that it comes with complementary wire harnesses, making installation more straightforward and ensuring you have all the necessary components for a successful replacement.
Key Features of the B1809913S Control Board
- HSI (Hot Surface Ignition) integrated design
- Includes essential wire harnesses
- OEM Goodman replacement part
- Compatible with numerous Goodman furnace models
- Dimensions: approximately 7.7″ x 6.3″ x 3″
Compatible Goodman Furnace Models with B1809913S
One of the most common questions about the b1809913s is which models it works with. The good news is that this control board is compatible with an extensive list of Goodman furnaces. Here’s a snapshot of some compatible models:
- GDT series: GDT045-3, GDT070-3, GDT090-4, GDT115-5 (including A and B variants)
- GMN series: GMN060-3, GMN080-4, GMN100-4, GMN120-5
- GMNT series: GMNT040-3B, GMNT060-3, GMNT080-4B, GMNT100-4, and many more
- GMP series: GMP050-3, GMP075-4, GMP100-5, GMP150-5, etc.
- GMT series: Multiple variants including GMT045, GMT070, GMT090, GMT115, and GMT140
- GMTH series: GMTH045-3, GMTH070-4, GMTH090-5, GMTH115-5
- Various other series including GMPE, GMPH, GMPN, GMPV, GPD, and GSMS models
The complete compatibility list is much more extensive, with over 100 compatible models. If you’re unsure whether the b1809913s works with your specific furnace, you can check the full list here.
Signs Your B1809913S Control Board Needs Replacement
How do you know if your b1809913s control board is failing? Here are some common symptoms that might indicate it’s time for a replacement:
Furnace Performance Issues
- Furnace fails to ignite or starts but shuts off prematurely
- Blower motor runs continuously or doesn’t run at all
- Inconsistent heating throughout your home
- Furnace cycles on and off too frequently (short cycling)
Visual and Technical Indicators
- Visible damage on the board (burn marks, melted components, etc.)
- LED lights on the control board showing error codes
- Clicking sounds but no ignition
- Burning smell coming from the furnace
If you’re experiencing any of these issues, it might be time to consider a b1809913s replacement. However, always consult with an HVAC professional if you’re unsure.
Installing the Goodman B1809913S Control Board
Whether you’re an HVAC pro or a confident DIYer, replacing the b1809913s control board requires careful attention to detail. Here’s a general overview of the installation process:
Safety First: Pre-Installation Steps
- Turn off power: Always disconnect power to your furnace at the breaker box before beginning any work.
- Remove access panels: Open the furnace to access the control board compartment.
- Take a photo: Before disconnecting anything, take clear pictures of the current board’s wiring connections for reference.
Replacement Process
- Disconnect the wires: Carefully disconnect all wiring from the old board, labeling them if necessary.
- Remove the old board: Unscrew and remove the damaged b1809913s control board.
- Install the new board: Mount the new b1809913s in the same position as the old one.
- Reconnect the wiring: Using your photo reference, reconnect all wires to the appropriate terminals on the new board.
- Replace access panels: Close up your furnace.
- Restore power: Turn the power back on at the breaker box.
- Test operation: Run your furnace through a heating cycle to ensure proper operation.
The b1809913s comes with wire harnesses included, which makes the installation process more straightforward compared to boards that require separate harness purchases.
OEM vs. Aftermarket: Why Choose the Genuine B1809913S?
When replacing your control board, you might wonder whether to go with the genuine b1809913s or an aftermarket alternative. Here’s why many professionals recommend sticking with OEM parts:
- Perfect compatibility: The OEM b1809913s is designed specifically for your Goodman furnace, ensuring proper fit and function.
- Reliable performance: Genuine parts meet the manufacturer’s exact specifications and quality standards.
- Warranty protection: Using OEM parts often preserves any remaining warranty on your system.
- Included components: The genuine b1809913s comes with necessary wire harnesses, which may not be included with generic replacements.
While aftermarket options might save a few dollars upfront, the potential for compatibility issues and shorter lifespan often makes the OEM b1809913s the smarter long-term investment.
Where to Buy the B1809913S Control Board
Ready to purchase a b1809913s control board for your Goodman furnace? You can find this essential part at various suppliers, but it’s important to buy from reputable sources to ensure you’re getting a genuine OEM component.
For convenience and reliability, you can purchase the genuine Goodman B1809913S control board here. This trusted source provides the authentic OEM part with included wire harnesses, ensuring you have everything needed for a successful replacement.
Troubleshooting Common B1809913S Issues
Even after installation, you might encounter some issues with your b1809913s control board. Here are solutions to common problems:
Furnace Won’t Power On
- Check that all wiring is securely connected
- Verify power is reaching the board
- Inspect fuses on the board
Blower Issues
- Ensure the blower settings are properly configured
- Check connections to the blower motor
- Verify that the blower relay on the b1809913s is functioning
Ignition Problems
- Check that the hot surface igniter is properly connected
- Verify gas valve connections
- Ensure flame sensor is clean and properly positioned
Final Thoughts on the B1809913S Control Board
The Goodman b1809913s control board is a critical component for many furnace models, serving as the brain that coordinates all heating operations. While replacing it might seem daunting, having the right information and parts makes the process much more manageable.
Whether you choose professional installation or decide to tackle it yourself, investing in a genuine b1809913s control board is a smart move for ensuring your Goodman furnace operates efficiently and reliably for years to come. Don’t wait until you’re left in the cold—if you’re seeing signs of control board failure, consider a replacement sooner rather than later.
Ready to get your heating system back in top shape? Click here to purchase the Goodman B1809913S control board and restore your furnace to optimal performance.
