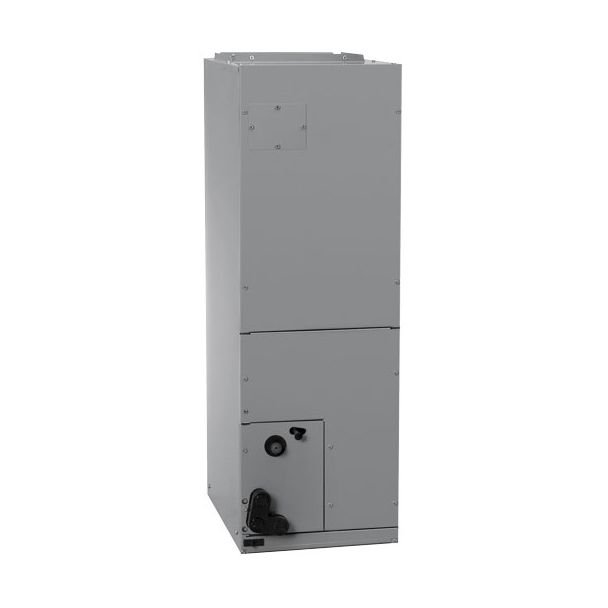

The Ultimate Guide to FVM4X2400BL: ACiQ’s 2-Ton Variable Speed Air Handler
Looking for a versatile and efficient air handler for your HVAC system? The FVM4X2400BL might be exactly what you need. This 2-ton variable speed air handler from ACiQ combines cutting-edge technology with practical design features that make it a standout choice for both professionals and homeowners seeking reliable climate control solutions.
I’ve seen countless air handlers in my years working with HVAC systems, and the FVM4X2400BL consistently impresses with its performance. Let’s dive into what makes this unit special and why it might be the perfect fit for your next installation.
FVM4X2400BL Key Features: What Makes This Air Handler Stand Out
The FVM4X2400BL air handler brings several impressive capabilities to the table that deserve attention:
- Variable speed ECM blower motor for enhanced efficiency
- Multi-positional installation options (upflow, downflow, and horizontal)
- Factory-installed TXV kit to simplify installation
- R-410A refrigerant compatibility
- 2-ton capacity with maximum 1200 CFM airflow
- Compatible with both AC-only and heat pump condensers
- Robust one-piece outer casing for durability
The variable speed technology is particularly noteworthy, as it allows for precise temperature control while minimizing energy consumption. This translates to both better comfort and lower utility bills – a win-win for everyone involved.
Understanding the FVM4X2400BL’s Installation Versatility
One of the biggest headaches in HVAC installations is finding units that can adapt to different spatial constraints. The FVM4X2400BL eliminates this concern with its multi-positional design. Whether your project requires upflow, downflow, or horizontal orientation, this air handler accommodates all three configurations without sacrificing performance.
The unit’s compact dimensions (42 11/16″ height, 17 5/8″ width, and 22 1/16″ depth) further enhance its installation flexibility, making it suitable for tight spaces where other models might not fit.
FVM4X2400BL Technical Specifications: The Details That Matter
When selecting an air handler like the FVM4X2400BL, understanding the technical specifications is crucial for ensuring proper system matching and performance:
- Electrical requirements: 208/230V, 1 Phase, 60 Hz
- Maximum breaker size: 15 Amps
- Motor RPM range: 300-1300
- Horsepower: 0.5 HP
- Liquid line connection: 3/8″
- Suction line connection: 3/4″
- Filter size: 16 3/8″ x 21 1/2″
- Weight: 124 pounds
The ECM variable speed motor operates between 300-1300 RPM, allowing it to precisely match airflow to your specific heating and cooling demands. This results in more consistent temperatures throughout your space and improved humidity control compared to single-speed models.
FVM4X2400BL Electric Heat Options for Enhanced Functionality
While the FVM4X2400BL works beautifully as part of a cooling system, it also offers versatile heating capabilities. The unit supports optional electric backup heat in various configurations:
- 5 Kilowatts
- 8 Kilowatts
- 10 Kilowatts
- 15 Kilowatts
- 20 Kilowatts
This flexibility allows the FVM4X2400BL to function either as a standalone electric furnace or as backup heat for a heat pump system. These electric heat kits are field-installed, giving you the option to add heating capability according to your specific climate requirements.
The Intelligence Behind FVM4X2400BL’s Comfort Control
What truly sets the FVM4X2400BL apart is its smart approach to comfort. The integrated control board communicates seamlessly with your thermostat, automatically adjusting the blower output to match your home’s changing needs.
This intelligent responsiveness delivers several tangible benefits:
- More stable indoor temperatures with fewer fluctuations
- Reduced energy consumption compared to single-speed systems
- Better humidity control during cooling operation
- Quieter operation, especially during low-demand periods
- Improved air filtration due to consistent air circulation
I’ve had clients repeatedly comment on the noticeable difference in comfort after upgrading to variable speed systems like the FVM4X2400BL. The elimination of the harsh on/off cycles common with conventional systems creates a more natural, comfortable indoor environment.
FVM4X2400BL Equivalents and Brand Compatibility
If you’re familiar with other major HVAC brands, it’s worth noting that the FVM4X2400BL has equivalents across several manufacturer lines:
- Carrier Equivalent: FV4CNF002L00
- Bryant Equivalent: FV4CNF002L00
- Tempstar Equivalent: FVM4X2400BL
This compatibility information can be particularly useful when replacing units in existing systems or when comparing specifications across different brand offerings.
FVM4X2400BL Warranty Coverage: Protection for Your Investment
ACiQ stands behind the FVM4X2400BL with solid warranty coverage:
- 10-year No Hassle Replacement warranty
- 10-year Parts warranty (with proper registration)
To maintain valid warranty coverage, remember these important requirements:
- Installation must comply with all state and local codes
- A new and certified coil must be installed simultaneously
- The complete system must be registered online through the manufacturer
After purchase, a representative will contact you to collect the necessary installation information for registration, simplifying the process for you.
Frequently Asked Questions About the FVM4X2400BL
Is the FVM4X2400BL compatible with heat pumps?
Yes, the FVM4X2400BL works with both traditional AC condensers and heat pump systems, making it a versatile choice for various climate control applications.
Can the FVM4X2400BL be installed in a horizontal position?
Absolutely! The FVM4X2400BL is designed for multi-positional installation, including upflow, downflow, and horizontal configurations.
What size filter does the FVM4X2400BL use?
The FVM4X2400BL requires a 16 3/8″ x 21 1/2″ air filter.
Does the FVM4X2400BL come with a TXV valve?
Yes, this unit comes with a factory-installed TXV (Thermostatic Expansion Valve) kit, which reduces installation time and costs.
What is the maximum CFM for the FVM4X2400BL?
The FVM4X2400BL delivers up to 1200 CFM of airflow at maximum capacity.
Why Choose the FVM4X2400BL for Your Next Installation
After examining all the features and specifications, it’s clear that the FVM4X2400BL represents an excellent choice for those seeking an efficient, versatile air handler. Its combination of variable speed technology, installation flexibility, and robust construction make it suitable for a wide range of residential applications.
Whether you’re replacing an aging unit or designing a new HVAC system, the FVM4X2400BL delivers the performance and reliability that today’s homeowners expect, while providing HVAC professionals with a product that installs easily and performs consistently.
Ready to upgrade your HVAC system with the FVM4X2400BL? Click here to check current pricing and availability and take the next step toward better indoor comfort and efficiency.
