CNPVP4821ALA: The 4-Ton Evaporator Coil That Keeps Homes Cool
Looking for reliable cooling performance in a compact, versatile package? The CNPVP4821ALA evaporator coil delivers exceptional cooling capacity in a design engineered for durability and efficiency. As a 4-ton cased vertical N-coil, this model has become a popular choice for upflow and downflow applications in residential HVAC systems.
Though this particular model has been discontinued, its specifications and performance characteristics remain highly relevant for those seeking replacements or similar alternatives in today’s market.
What Is the CNPVP4821ALA and Why Does It Matter?
The CNPVP4821ALA is a 4-ton cased vertical evaporator coil designed for use with R-410A refrigerant systems. It’s manufactured by Carrier but also available under the Bryant and Payne brands, making it compatible with multiple HVAC system configurations.
Let me break down why this particular coil stands out:
- All-aluminum coil construction for superior corrosion resistance
- Factory-installed TXV (thermostatic expansion valve) for optimal refrigerant control
- Sloped drain pan design to reduce moisture retention and prevent mold growth
- Versatile upflow/downflow configuration options
- Compact 21″ cabinet width for flexible installation options
CNPVP4821ALA Technical Specifications
Before diving deeper, let’s look at the core specifications that make the CNPVP4821ALA suitable for many residential applications:
- Cooling capacity: 48,000 BTU/h (nominal), with operating range of 23,800-57,500 BTU/h
- Compatible refrigerant: R-410A (Puron)
- Dimensions: 21″ width x 22-1/16″ height x 21″ depth
- Weight: Approximately 65.5 lbs
- Airflow range: 1200-2000 CFM
- Drain connection: 3/4″
- N-coil design for maximum heat transfer efficiency
Why Consider a Complete System Upgrade Instead of Just the CNPVP4821ALA Coil?
While you might be searching specifically for the CNPVP4821ALA coil, there’s significant value in considering a complete system replacement. Modern HVAC systems offer improved efficiency, reliability, and performance compared to older individual components.

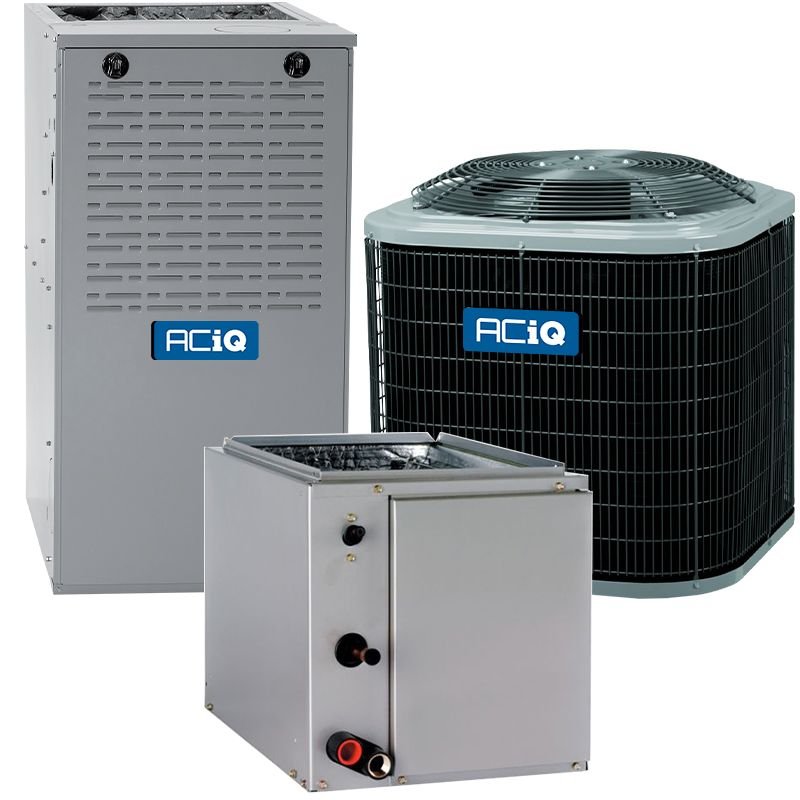

A complete system like the 4 Ton 15 SEER 80% AFUE 110,000 BTU ACiQ Gas Furnace and Air Conditioner System delivers exceptional value by pairing compatible components designed to work seamlessly together.
Benefits of the Complete ACiQ System Over Individual Components
This complete system includes an evaporator coil comparable to the CNPVP4821ALA but adds significant advantages:
- Higher SEER rating (15 vs. 14 in older systems) for improved energy efficiency
- Factory-matched components ensure optimal performance
- Single warranty covering all system components
- Modern R-410A refrigerant compatibility
- Multi-position installation flexibility (upflow/downflow)
- Quieter operation with enhanced cabinet insulation
The ACiQ system features a 4-ton evaporator coil (END4X48L21A) that’s equivalent to the Carrier CNPVP4821ALA, making it a perfect replacement option.
CNPVP4821ALA Features That Made It Popular
The CNPVP4821ALA gained popularity among HVAC professionals for several key design elements that addressed common cooling system challenges:
Corrosion-Resistant Design
One of the most significant advantages of the CNPVP4821ALA is its all-aluminum construction. Unlike older copper coils, aluminum significantly reduces the risk of formicary corrosion, extending the life of the system and improving reliability.
Leak Prevention Technology
The CNPVP4821ALA incorporates several design elements to prevent common leak issues:
- Brass inserts for condensate line connections
- Durable sweat connections for refrigerant lines
- Teflon ring on the liquid line to reduce connection stress
- High-quality materials with a burst pressure rating of 2100 psi
Efficient N-Coil Design
The N-shaped coil configuration maximizes surface area within the compact cabinet, enhancing heat transfer efficiency and improving overall system performance.
Finding the Right CNPVP4821ALA Replacement
Since the CNPVP4821ALA has been discontinued, you’ll need to consider replacement options that match its specifications and performance characteristics. The good news is that several high-quality alternatives are available.
Direct Replacement Options
The most straightforward replacements come from the same manufacturer family:
- Current Carrier CNPVP series models with 4-ton capacity and 21″ width
- Bryant equivalents in the CNPVP lineup
- ACiQ END4X48L21A (included in the complete system package)
Key Compatibility Considerations
When selecting a replacement for the CNPVP4821ALA, ensure the new coil matches these critical specifications:
- R-410A refrigerant compatibility
- Proper tonnage (4-ton/48,000 BTU capacity)
- Cabinet dimensions (21″ width is crucial for many installations)
- Upflow/downflow configuration capability
- Appropriate connection sizes (3/8″ liquid line, 7/8″ suction line)
Why Consider the ACiQ Complete System vs. Just a CNPVP4821ALA Replacement
While finding an exact CNPVP4821ALA replacement might seem like the simplest solution, there are compelling reasons to consider upgrading to a complete system like the 4 Ton 15 SEER ACiQ package:
Enhanced Energy Efficiency
The ACiQ system delivers 15 SEER efficiency, exceeding the typical 14 SEER rating of older systems with components like the CNPVP4821ALA. This translates to lower energy bills and reduced environmental impact.
Matched Component Performance
Factory-matched components work together seamlessly, eliminating potential compatibility issues that can arise when mixing new and old parts from different manufacturers.
Comprehensive Warranty Coverage
The ACiQ system comes with extensive warranty protection, including:
- 10-year parts limited warranty (with registration)
- 20-year heat exchanger limited warranty
This comprehensive coverage provides peace of mind that individual component replacements often can’t match.
Modern Features and Technology
The ACiQ system incorporates advanced features like:
- Multi-speed ECM blower motor for enhanced comfort and efficiency
- Improved cabinet insulation for quieter operation
- Thicker sheet metal construction for durability
- Advanced diagnostic capabilities
Installation Considerations for CNPVP4821ALA Replacements
Whether you choose a direct CNPVP4821ALA replacement or upgrade to a complete system, proper installation is critical for optimal performance and longevity.
Professional Installation Requirements
HVAC systems require professional installation by licensed technicians. This is especially important when working with components like the CNPVP4821ALA that involve refrigerant handling and complex connections.
System Matching Considerations
When replacing just the evaporator coil, ensure compatibility with your existing condensing unit and furnace. Mismatched components can lead to efficiency losses, premature component failure, and comfort issues.
Conclusion: Making the Right Choice for Your CNPVP4821ALA Needs
The CNPVP4821ALA represents a specific solution for 4-ton cooling requirements in residential applications. While finding an exact replacement is possible, considering a complete system upgrade often provides superior value, performance, and reliability.
The ACiQ 4-ton complete system offers an excellent alternative with its END4X48L21A evaporator coil that matches the CNPVP4821ALA’s critical specifications while delivering enhanced efficiency and comprehensive warranty coverage.
Whether you’re an HVAC professional or homeowner researching the CNPVP4821ALA, understanding all your options ensures you’ll make an informed decision that balances performance, efficiency, and long-term value.
